HYG Benelux BV hold a physical stock of High-Quality Stainless Instrumentation Tubes in our Tholen facility to suit our HY-LOK compression fittings range for immediate dispatch, in addition to be able to offer your bulk requirements on relatively short production times.
Stainless Seamless & Welded Tubes in Fixed Lengths & CoilsFor Oil & Gas, Downhole & Instrumentation Applications
Item
- Stainless Steel Seamless or Welded & Drawn Tube – Straight & Coiled
Applicable Specifications
- ASTM A213, A269, ASME Sec. II Part A SA213, SA269, EN10216-5, EN10217-7
- NACE MR0175, ISO 15156
- NACE MR0103, ISO 17495
Typical Materials
- 304, 304L, 316L, 316L-S2 (Sulfur 0.005-0.015%)
- EN1.4301, EN1.4307, EN1.4404, EN1.4541, EN1.4571, EN1.4462, EN1.4435, EN1.4876
Other materials available upon request
Finish
- BA | Bright Annealed
OD mechanical polish to 240 or 320 grit available for straight tubings
Dimension
- OD | Straight : 1/16” (1.59mm) to 2” (50.80mm)
- OD | Coiled : 1/16” (1.59mm) to 1” (25.40mm)
- Wall Thickness : 0.01” (0.25mm) to 0.120” (3.05mm)
- Length | Straight : 10’ (3.048m) or 20’ (6.096m)
- Length | Coiled : Maximum 100kgs per coil / without orbital welding
Please contact us for other special dimensions
Technical Requirements
- 100% Eddy Current Tested acc. to ASTM A1016, A1016M, E426
- 100% Hydrostatic Test at 1000psi [7MPa], Min. 5 seconds
- 100% Visual & Surface inspected
- Intergranular Corrosion Tested acc. to ASTM A262 Practice E
Packaging
- Straight Tubing | individually PE end-capped, bundle sleeved, wooden box packaging
- Coiled Tubing | supplied in loose coils or in wooden reel, stacked in wooden pallets or wooden box

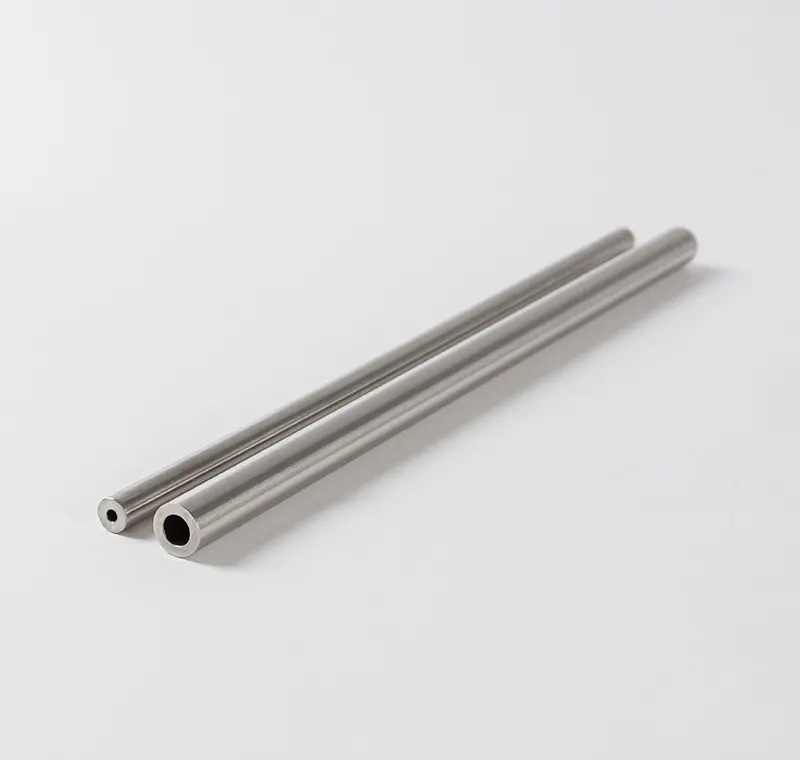

Nickel Alloy Seamless Tubes in fixed lengths & CoilsSpecial Alloy Seamless Tubes
Item
- Special Alloy Seamless Tubes
Applicable Specifications
- ASTM B165, ASTM B167
- NACE MR0175, ISO 15156
- NACE MR0103, ISO 17495
Typical Materials
- N04400, N08825, N06600, N06625, 904L
Other materials available upon request
Finish
BA | Bright Annealed
- OD mechanical polish to 240 or 320 grit available for straight tubings
Dimension
Imperial Sizes
- OD | Straight : 1/16” (1.59mm) to 2” (50.80mm)
- OD | Coiled : 1/16” (1.59mm) to 1” (25.40mm)
- Wall Thickness : 0.01” (0.25mm) to 0.120” (3.05mm)
- Length | Straight : 10’ (3.048m) or 20’ (6.096m)
- Length | Coiled : custom lengths
Please contact us for other special dimensions
Technical Requirements
- 100% PMI tested
- 100% Eddy Current Tested acc. to ASTM B829
- 100% Hydrotested at 1000psi [7MPa], min 10 seconds
- 100% Visual & Surface inspected
Packaging
- Straight Tubing | individually PE end-capped, bundle sleeved, wooden box packaging
- Coiled Tubing | supplied in loose coils or in wooden reel, stacked in wooden pallets or wooden box
Jacketed, Downhole TubesSpecial Alloy Seamless Tubes
Jacketed Tubes
Sheath Material
| Material | PVC | FR PVC | HR PVC | TPU | HFFR PE | PE | XLPE |
|---|---|---|---|---|---|---|---|
| Tensile Strength (kgf/mm²) | 1.2~1.4 | 1.3~1.8 | 1.2~1.7 | 2.0~2.5 | 1.0~1.4 | 2.3~2.8 | 2.0~2.5 |
| Service Temperature (°C) | -40~+70 | -40~+70 | -50~+105 | -50~+90 | -45~+70 | -75~+75 | -50~+90 |
| Elongation (%) | 200~300 | 200~400 | 200~350 | 400~600 | 500~600 | 650~750 | 550~650 |
| Hardness Shore A | 86~90 | 87~91 | 73~77 | 88~92 | N/A | N/A | N/A |
| Hardness Shore D | N/A | N/A | N/A | N/A | 48~50 | 59~61 | 50~52 |
Tube Materials
- 304, 304/L, 316L, N04400, N08825, etc.
Tube Type
- Seamless or Welded
Dimension
- Coiled : max OD 1” (25.4mm) x length 100kgs based
- Straight : max OD 2” (50.8mm) x length max 8m
Orbital weld option available for longer lengths for coiled tubes

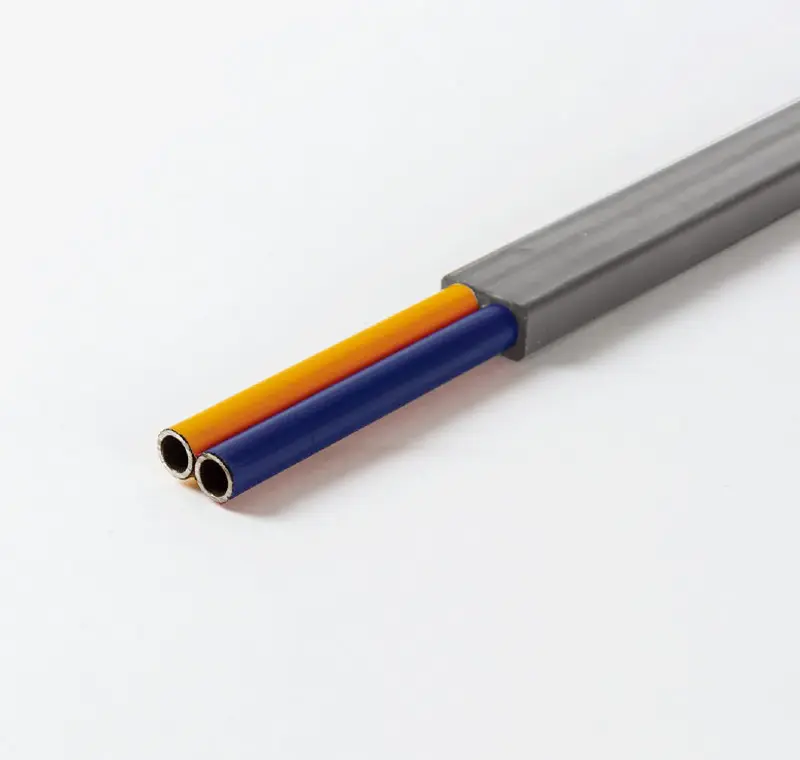

Encapsulated Flat Pack
Sheath Material
- TPV(main), PVC, FR PVC, HR PVC, TPU, HFFR PE, PE, XLPE
Shapes
- Square, Rectangular, Round
Tube Materials
- 304, 304/L, 316L, N04400, N08825, etc.
Tube Type
- Seamless or Welded
Dimension
- Coiled : max OD 1” (25.4mm) x length 100kgs based
- Straight : max OD 2” (50.8mm) x length max 8m
Orbital weld option available for longer lengths for coiled tubes
